Prevention and Diagnosis of Tungsten Carbide Die Fatigue Failure

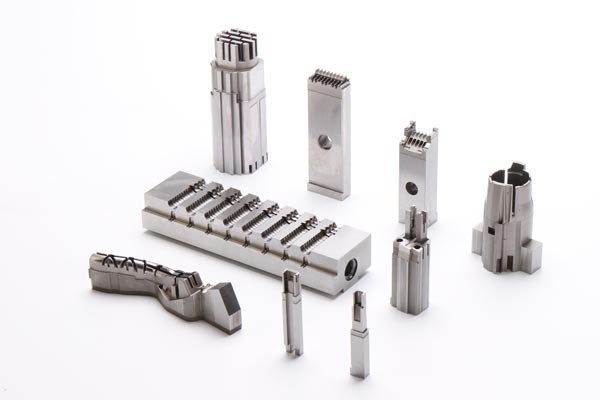

Tungsten carbide dies, with their high hardness, superior wear resistance, and excellent thermal stability, have become indispensable core tools in modern industrial production. However, as service cycles extend, fatigue failure has become increasingly prominent, directly impacting production efficiency and product yield. How to effectively prevent fatigue failure and achieve accurate diagnosis has become a critical challenge shared by die manufacturers and end users. This article provides a systematic analysis from three dimensions: failure causes, prevention strategies, and diagnostic methods.

1. Core Causes of Tungsten Carbide Die Fatigue Failure

Fatigue failure of tungsten carbide dies refers to the phenomenon where the die, under conditions far below its normal strength limit, develops progressively expanding brittle cracks due to repeated alternating and cyclical stresses, ultimately leading to fracture. The causes can be summarized across four dimensions:

Our factory business: carbide parts, mold parts, medical injection molds, precision injection molds, teflon PFA injection molding, PFA tube fittings. email: [email protected],whatsapp:+8613302615729.

Internal material defects. Microscopic defects such as porosity, inclusions, and looseness may be introduced during the smelting, forging, and rolling of tungsten carbide materials. These defects gradually propagate into crack sources during service, serving as the intrinsic origin of fatigue failure.

Stress concentration. Unreasonable die design, insufficient machining precision, or excessive surface roughness can all create localized stress concentration points, causing certain areas to bear stresses far exceeding the average and significantly accelerating crack initiation and propagation.

Thermal stress impact. Dies are subjected to temperature fluctuations and thermal stresses during operation, particularly in alternating hot and cold environments. The superposition of thermal and mechanical stresses readily induces thermal fatigue cracking, which is especially common in die-casting and thermoforming dies.

Service environment erosion. External factors such as corrosive media and abrasive wear continuously compromise surface integrity, acting as external accelerators for fatigue crack propagation.

2. Systematic Prevention Strategies for Fatigue Failure

Addressing the above causes requires coordinated action across five links: material selection, design, machining, heat treatment, and operational use.

Strict material selection. Prioritize high-purity tungsten carbide materials with no internal porosity or inclusions. Pay close attention to chemical composition, microstructural uniformity, and mechanical property indicators to ensure full alignment with die service requirements.

Optimized structural design. During the design phase, thoroughly evaluate the service environment, operating conditions, and loading characteristics. Eliminate stress concentration points through measures such as fillet transitions and reinforcement rib layouts, reducing fatigue risk at the structural level.

Enhanced machining precision. Employ precision machining equipment and processes to strictly control surface roughness and machining marks, minimizing surface defects that can trigger cracks and reducing the probability of stress concentration.

Heat treatment optimization. Apply reasonable quenching and tempering processes to improve material microstructure and achieve a better balance between strength and toughness, thereby lowering the risk of fatigue crack initiation. At the same time, strictly control temperature and hold time during heat treatment to prevent overheating or burning.

Service environment management. During operation, control corrosive and abrasive factors, and establish a routine mechanism for cleaning, lubrication, and maintenance to sustain the die in optimal working condition.

3. Accurate Diagnostic Methods for Fatigue Failure

When a tungsten carbide die shows signs of fatigue failure, rapid root cause identification is the prerequisite for formulating repair and prevention plans. The following five diagnostic methods can be used in combination:

Macroscopic observation. Inspect crack morphology, propagation direction, and distribution patterns with the naked eye or a magnifying glass to preliminarily assess the failure mode and severity.

Microscopic analysis. Use scanning electron microscopy (SEM) and energy-dispersive spectroscopy (EDS) to examine the crack surface at the micro level, identifying crack origin and propagation mechanisms through morphological and compositional data.

Mechanical property testing. Perform tensile and impact tests on die samples to quantitatively evaluate current strength and toughness levels, providing data support for failure attribution.

Heat treatment record review. Retrieve and analyze the die’s heat treatment process records and actual results to determine whether deviations occurred and how they may have affected fatigue life.

Finite element simulation. Use finite element software to simulate stress distribution and deformation under working conditions, precisely locating stress concentration zones and high-risk areas to guide design optimization.

Through the combined application of the above diagnostic approaches, the root cause and mechanism of fatigue failure can be accurately identified, enabling targeted repair and prevention measures. Meanwhile, establishing a routine die monitoring and maintenance system to eliminate potential risks at the earliest stage is the fundamental path to ensuring long-term, stable die operation.
